Model:
SBDU100 PRO

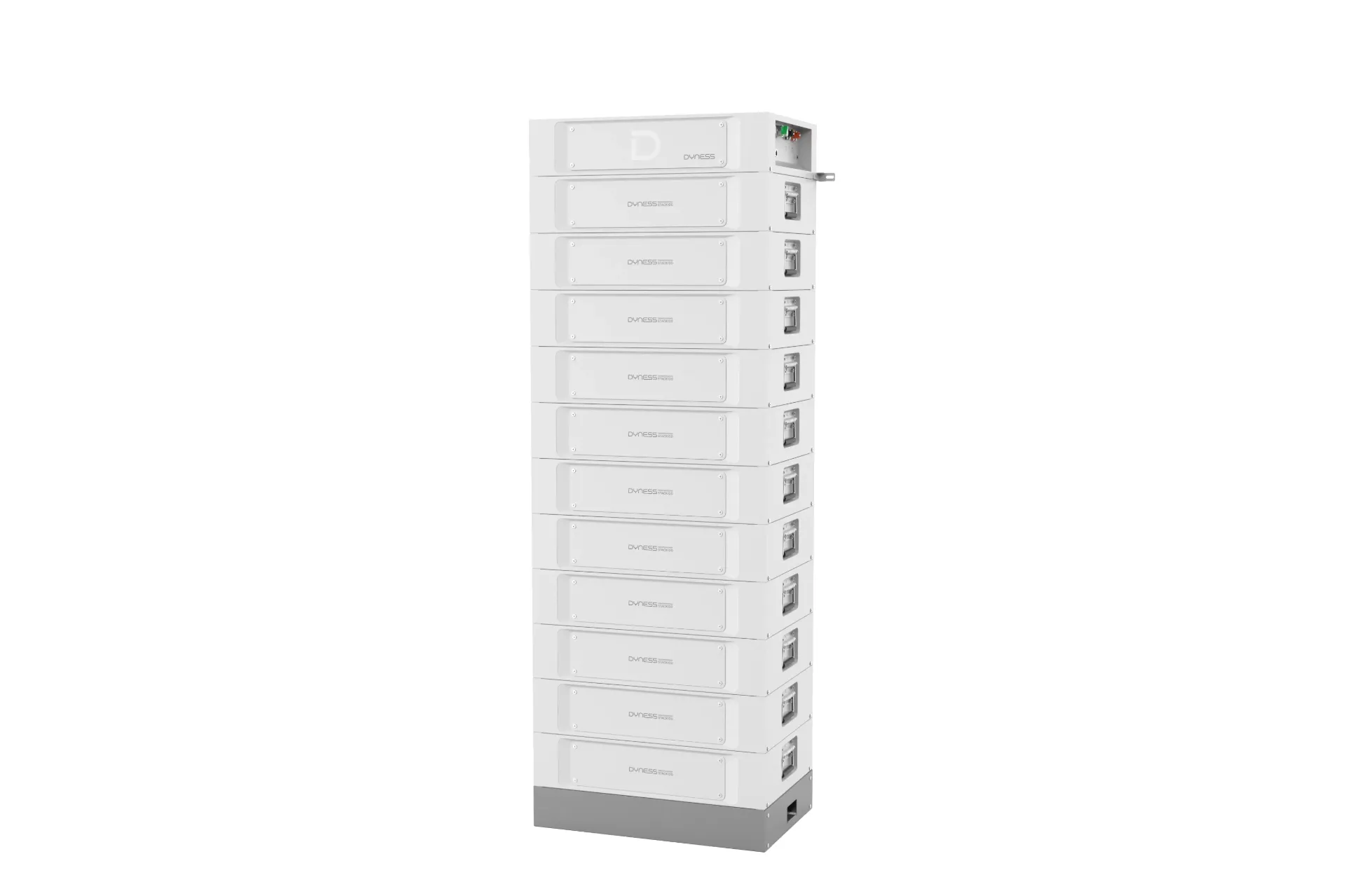

Dyness SBDU100 PRO (BDU) + BASE – STACK100 PRO Control Unit
The Dyness SBDU100 PRO is the Battery Distribution Unit (BDU) and base required to operate the STACK100 PRO high-voltage battery system. It sits at the bottom of the stack, manages communication, protection and power distribution, and enables cable-free stacking of the S51100 Pro battery modules.
Key Features & Benefits
- Official BDU + Base for Dyness STACK100 PRO
- Required to start a working high-voltage stack
- Cable-free stacking design for fast installation
- Built-in protection and isolation
- CAN / RS485 communication with compatible hybrid inverters
- Supports 3–15 battery modules per stack
- Compatible with Deye and other leading inverter brands
- IP66 outdoor-ready system architecture
- 10-year warranty (system dependent)
Technical Highlights
Parameter | Value |
|---|---|
Model | SBDU100 PRO |
Product Type | BDU + Base |
Compatible Modules | Dyness S51100 Pro |
Modules per Stack | 3 – 15 |
Stack Energy Range | 15.36 – 76.8 kWh |
System Voltage Range | Approx. 134.4 – 864 V |
Max Continuous Current | 100 A |
Peak Current | 125 A |
Communication | CAN / RS485 |
Cooling | Natural (fan-free) |
Protection Rating | IP66 (system) |
Installation | Cable-free stacking |
Important Notes:
This product is the BDU + Base only. Battery modules (S51100 Pro) are sold separately. A minimum of 3 battery modules is required to form a functional STACK100 PRO system.
Ideal for Australian installers building a scalable, outdoor-ready high-voltage storage system that pairs well with Deye hybrid inverters.
Available now at PowerEase – Local stock, fast delivery and expert technical support.
