Deye AI-W5.1-PDU3-B + Base (Expandable) – Power Distribution Unit & Floor Stand

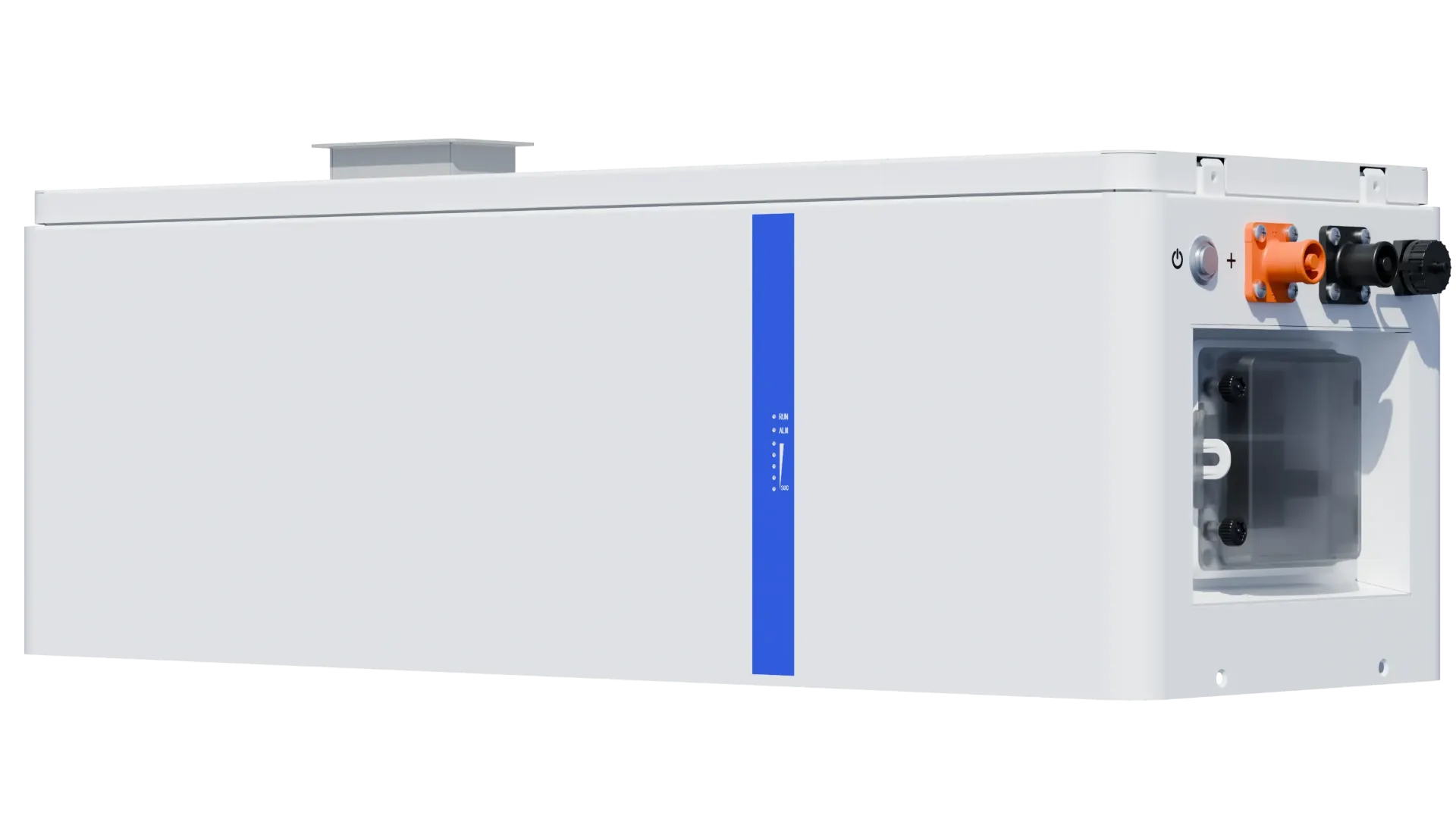

The Deye AI-W5.1-PDU3-B + Base (Expandable) is the official Power Distribution Unit III kit for the Deye AI-W5.1 series. It sits between the AI-W5.1-B-ESS stackable hybrid inverter and the AI-W5.1-B battery modules, providing the critical power and communication connection for the complete energy storage system.
Key Difference from the Non-Expandable Version
- Non-expandable version: Limited to a single cluster of 2–6 battery modules (10–30 kWh).
- This Expandable version: Supports inter-cluster capacity expansion and parallel operation, allowing multiple clusters (up to 6 clusters / 36 modules / 184 kWh total).
Key Features & Benefits
- Connects the AI-W5.1-B-ESS stackable inverter and AI-W5.1-B battery modules
- Supports single-cluster (2–6 modules) or multi-cluster parallel expansion
- Built-in 250A 2P circuit breaker
- Parallel communication ports for master/slave cluster connection
- LED status display (SOC + working/alarm indicators)
- Includes matching floor-standing base for secure installation
- IP65 system rating after stacking
Technical Specifications
PDU3: approx. 720 × 255 × 228–240 mm | approx. 15–18.5 kg

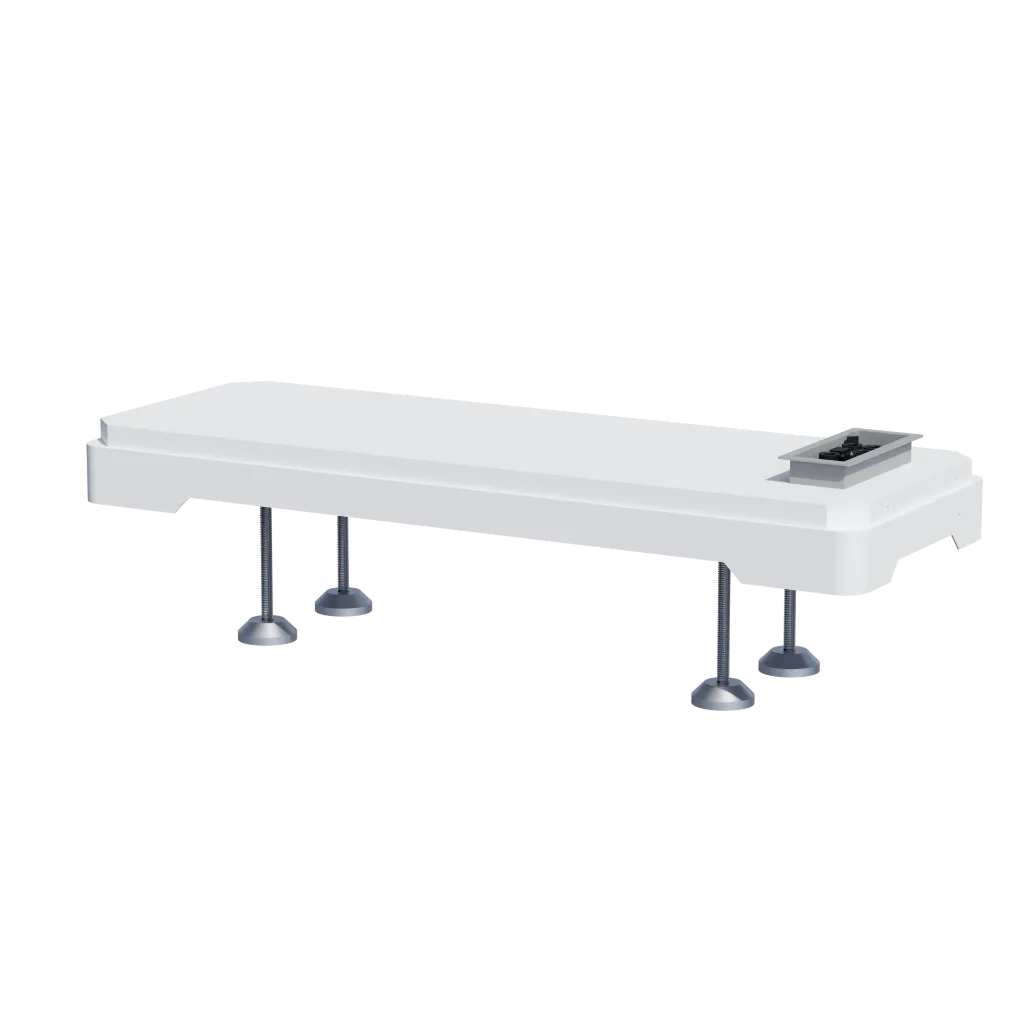

Base: 720 × 255 × 68 mm | approx. 6.5 kg
Essential interface unit for both standard AI-W5.1 battery systems and the full AI-W5.1-B-ESS all-in-one stackable inverter + battery solutions.
Available now at PowerEase – Official Deye Golden Authorized Distributor for Australia & Oceania. Local stock, fast delivery and expert technical support.
