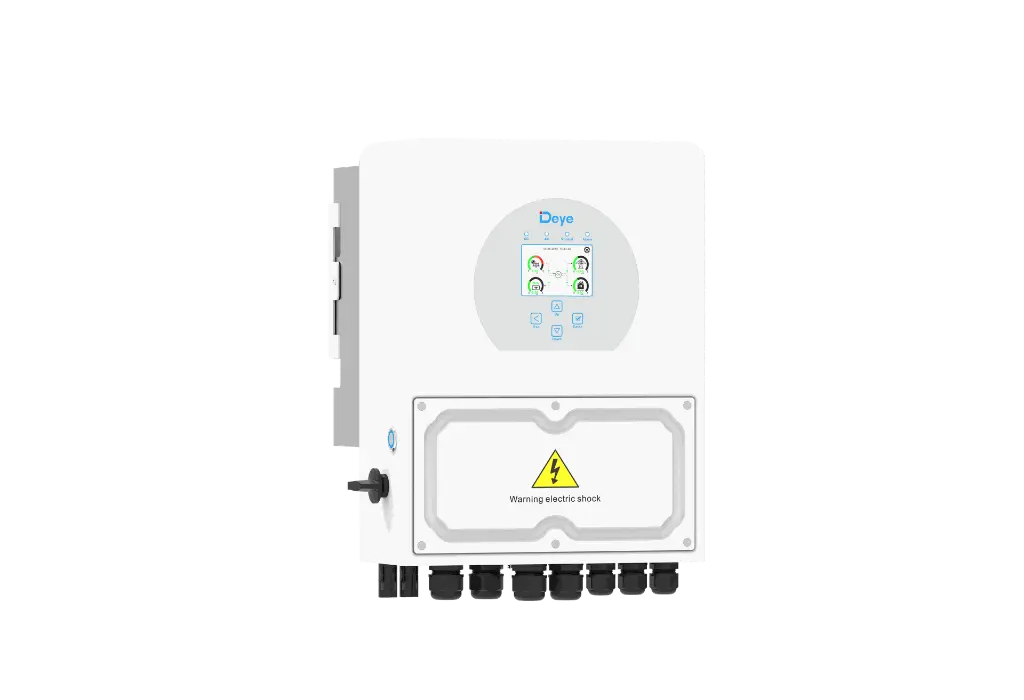

Deye SUN-3.6K-SG04LP1-AU 3.6kW Single-Phase Hybrid Inverter
The Deye SUN-3.6K-SG04LP1-AU is a compact and efficient 3.6 kW single-phase low-voltage hybrid inverter designed for Australian residential solar + storage systems. It supports seamless on-grid, off-grid and backup operation with reliable performance and flexible battery compatibility.
Key Features & Benefits
- 3.6 kW single-phase hybrid inverter
- Compatible with 40–60 V low-voltage LiFePO4 or lead-acid batteries
- Dual MPPT solar inputs
- Max charge/discharge current: 90 A
- Max continuous AC passthrough current: 35 A
- Supports diesel generator input
- Parallel operation (up to 16 units)
- IP65 outdoor-rated enclosure
- Smart monitoring and control via Deye Cloud App
- 10-year warranty
Technical Highlights
Parameter | Value |
|---|---|
Rated AC Output Power | 3600 W |
Max AC Output Power | 3600 W |
Battery Voltage Range | 40 – 60 V |
Max Charge/Discharge Current | 90 A |
Max Continuous AC Passthrough | 35 A |
Max PV Input Power | 4680 W |
Max PV Input Voltage | 500 V |
MPPT Voltage Range | 150 – 425 V |
No. of MPPTs / Strings | 2 / 1+1 |
Max Efficiency | 97.60% |
Euro Efficiency | 96.50% |
Grid Connection | L + N + PE, 230/240 V |
Protection Rating | IP65 |
Operating Temperature | –40°C to +60°C |
Ideal for smaller Australian single-phase homes seeking a reliable, expandable hybrid solar and battery solution.
