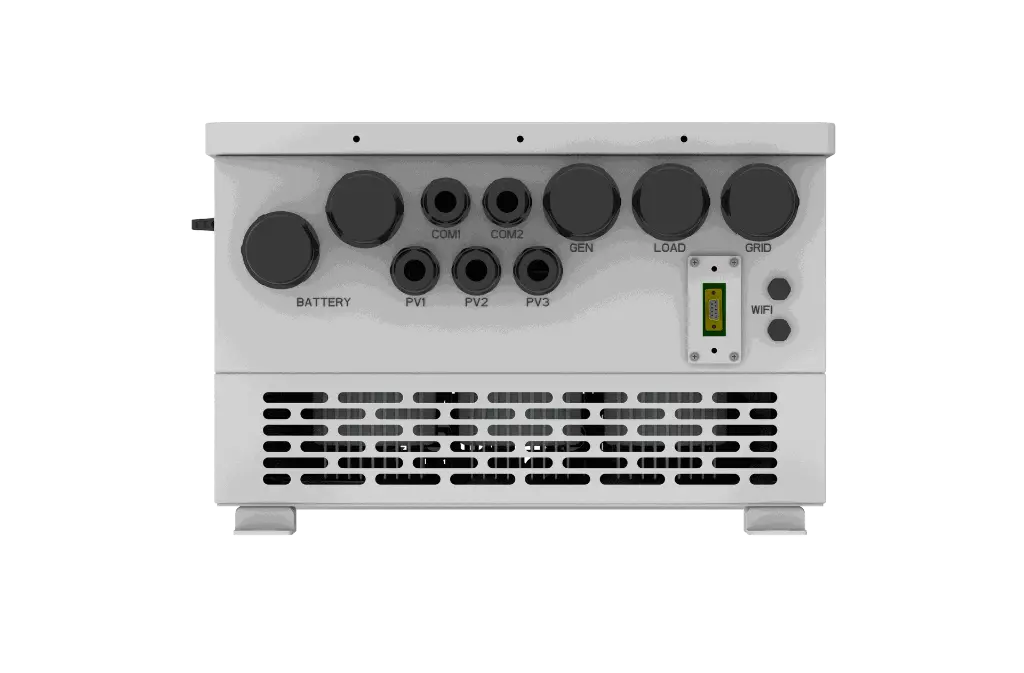

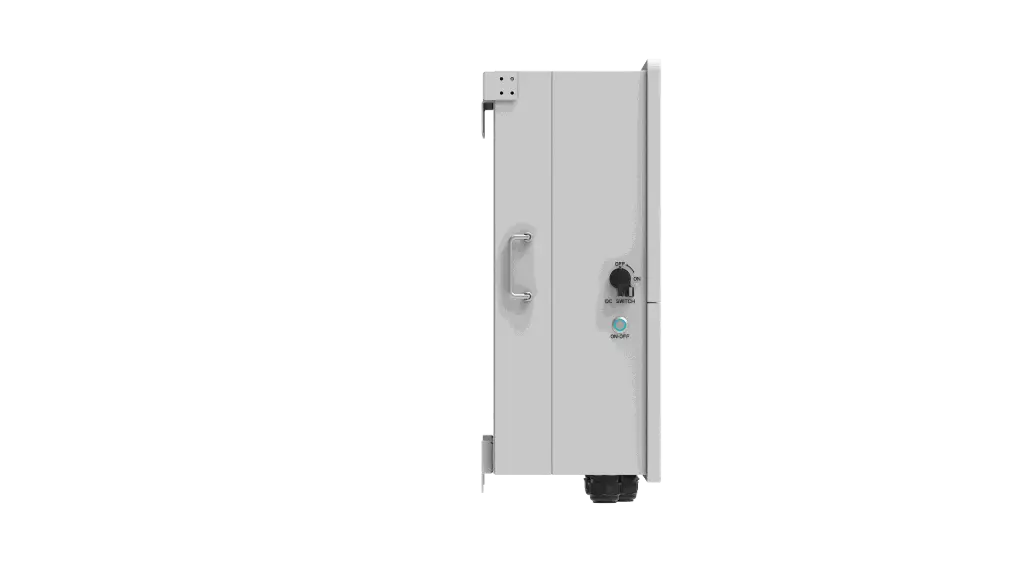

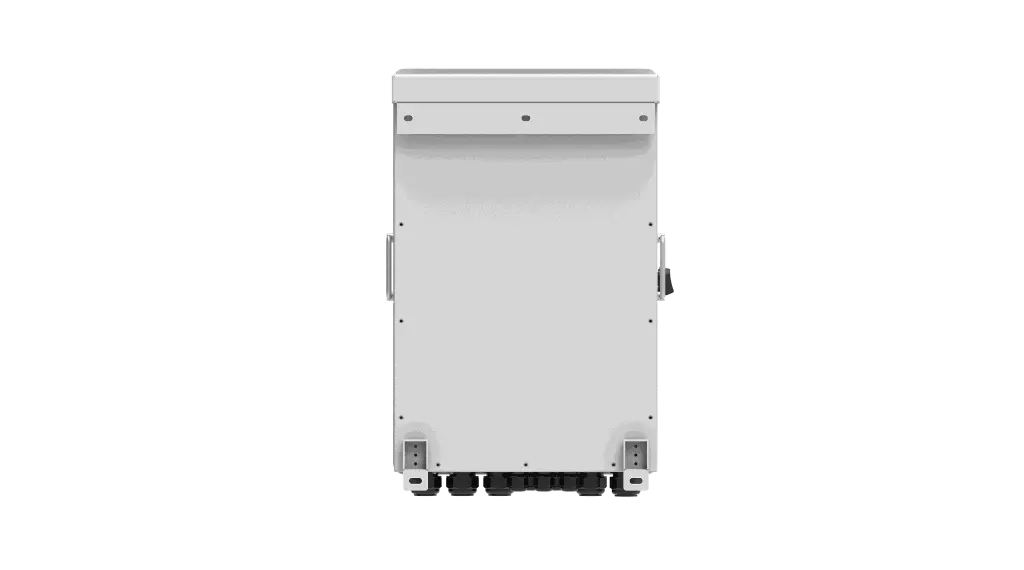

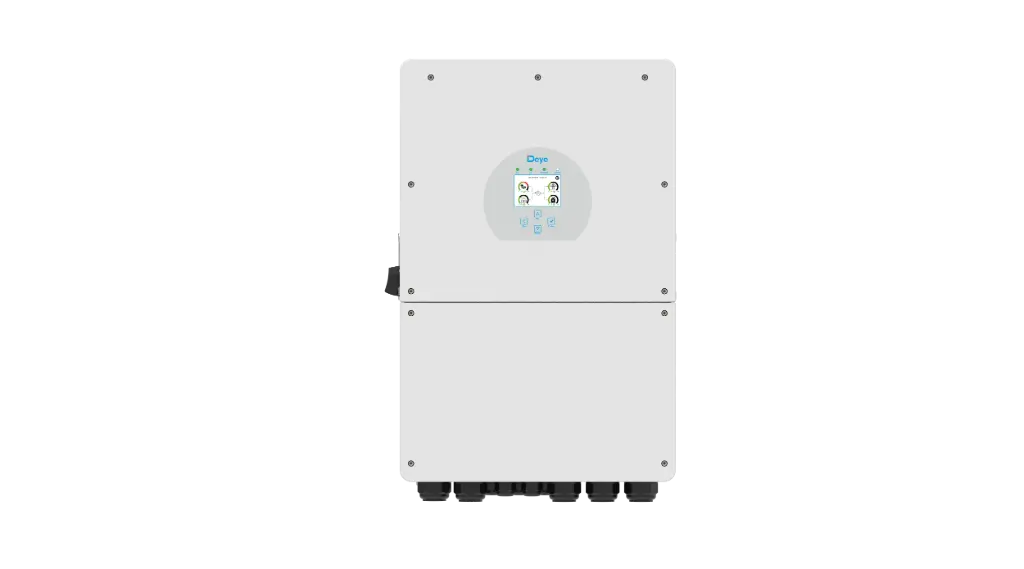

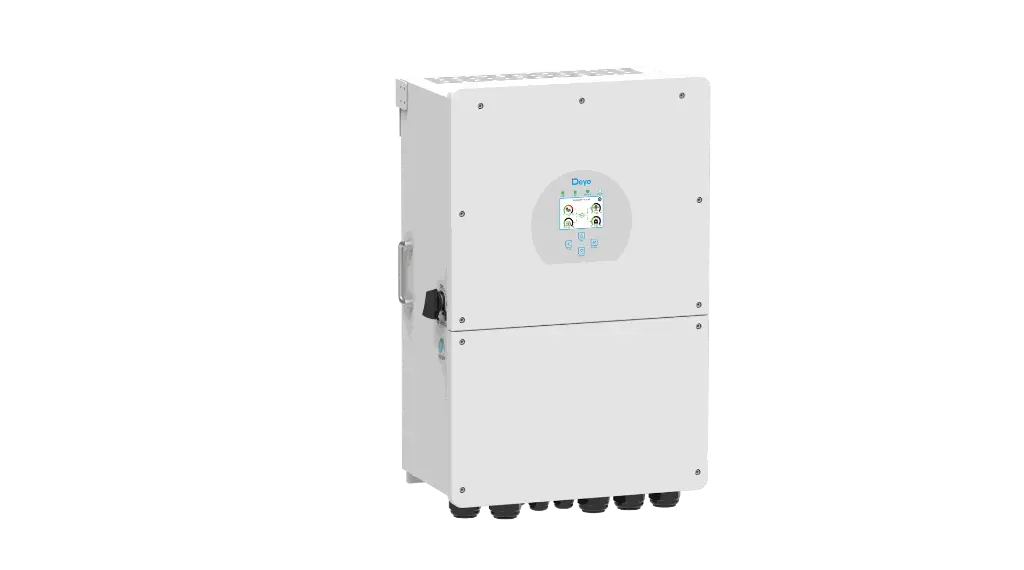

Deye SUN-16K-SG01LP1-AU 16kW Single-Phase Hybrid Inverter
The Deye SUN-16K-SG01LP1-AU is a high-power 16 kW single-phase low-voltage hybrid inverter designed for Australian residential and light commercial solar + storage systems. With very high battery charging capability and strong performance, it is ideal for larger homes requiring reliable hybrid energy solutions.
Key Features & Benefits
- 16 kW single-phase hybrid inverter
- Compatible with 40–60 V low-voltage LiFePO4 or lead-acid batteries
- Max charge/discharge current: 290 A
- Triple MPPT solar inputs
- Max continuous AC passthrough current: 100 A
- Supports diesel generator input
- Parallel operation (up to 16 units)
- IP65 outdoor-rated enclosure
- Smart monitoring and control via Deye Cloud App
- 10-year warranty
Technical Highlights
Parameter | Value |
|---|---|
Rated AC Output Power | 16 000 W |
Max AC Output Power | 17 600 W |
Battery Voltage Range | 40 – 60 V |
Max Charge/Discharge Current | 290 A |
Max Continuous AC Passthrough | 100 A |
Max PV Input Power | 20 800 – 24 000 W |
Max PV Input Voltage | 500 V |
MPPT Voltage Range | 150 – 425 V |
No. of MPPTs / Strings | 3 / 2+2+2 |
Max Efficiency | 97.60% |
Euro Efficiency | 96.50% |
Grid Connection | L + N + PE, 230/240 V |
Protection Rating | IP65 |
Operating Temperature | –40°C to +60°C |
Ideal for larger Australian single-phase homes seeking high battery power and expandable hybrid solar storage.
Available now at PowerEase – Official Deye Golden Authorized Distributor for Australia & Oceania. Local stock, fast delivery and expert technical support.
