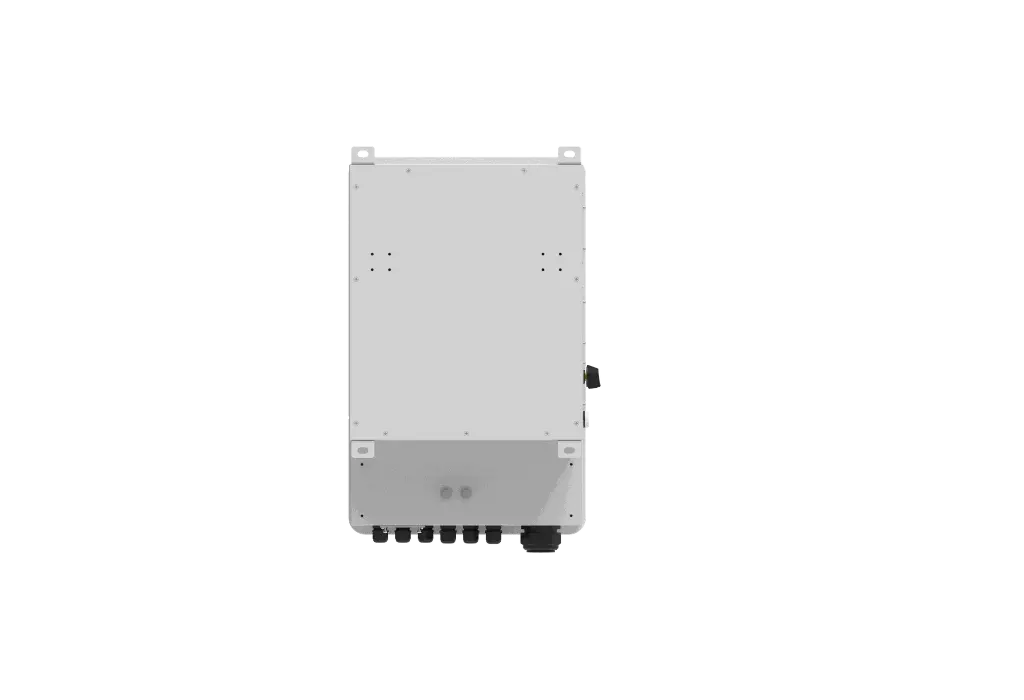

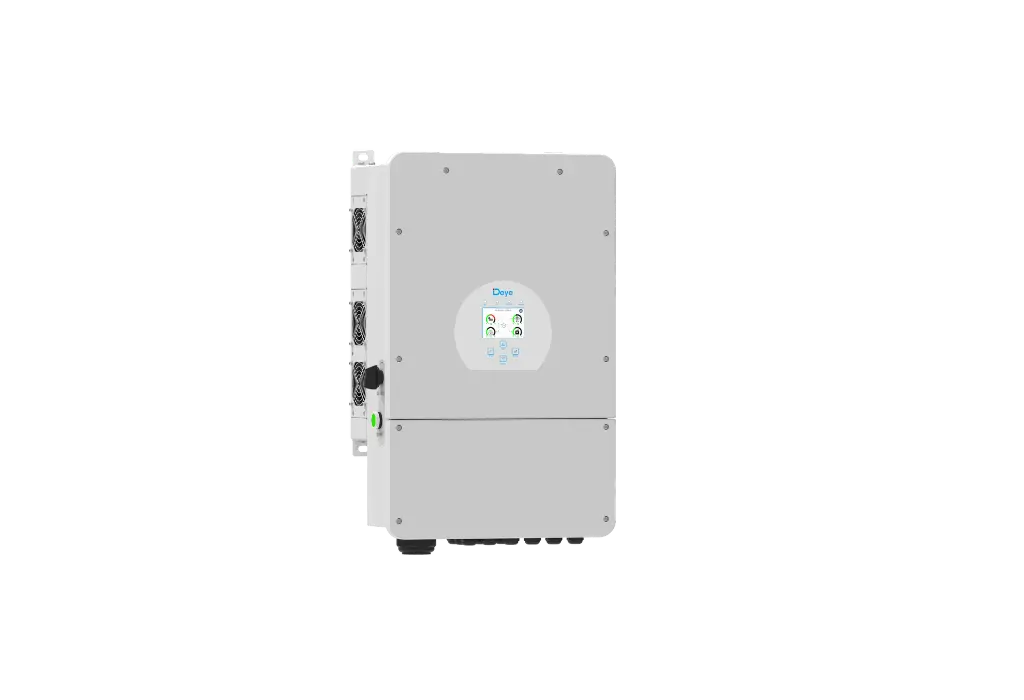

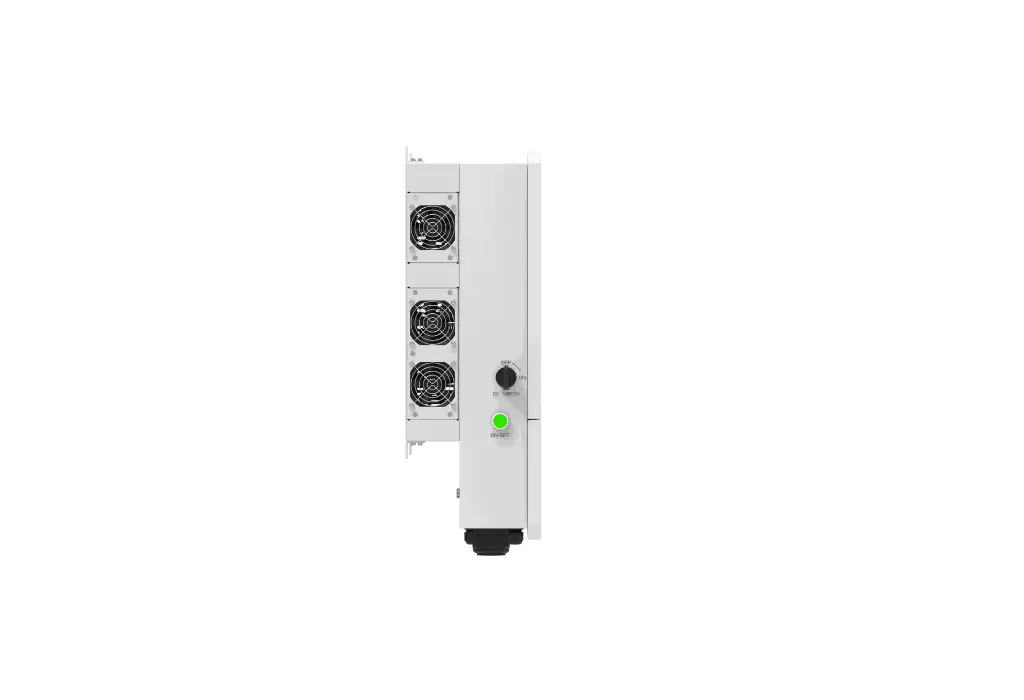

Deye SUN-12K-SG02LP1-AU-AM3 12kW Single-Phase Hybrid Inverter
The Deye SUN-12K-SG02LP1-AU-AM3 is a high-performance 12 kW single-phase low-voltage hybrid inverter designed for Australian residential solar + storage systems. It features triple MPPT inputs, strong battery charging capability and excellent efficiency for reliable on-grid, off-grid and backup operation.
Key Features & Benefits
- 12 kW single-phase hybrid inverter
- Compatible with 40–60 V low-voltage LiFePO4 or lead-acid batteries
- Max charge/discharge current: 250 A
- Triple MPPT solar inputs
- Max continuous AC passthrough current: 60 A
- Supports diesel generator input
- Parallel operation (up to 16 units)
- IP65 outdoor-rated enclosure
- Smart monitoring and control via Deye Cloud App
- 10-year warranty
Technical Highlights
Parameter | Value |
|---|---|
Rated AC Output Power | 12 000 W |
Max AC Output Power | 13 200 W |
Battery Voltage Range | 40 – 60 V |
Max Charge/Discharge Current | 250 A |
Max Continuous AC Passthrough | 60 A |
Max PV Input Power | 18 000 – 19 200 W |
Max PV Input Voltage | 500 V |
MPPT Voltage Range | 150 – 425 V |
No. of MPPTs / Strings | 3 / 2+2+2 |
Max Efficiency | 97.60% |
Euro Efficiency | 96.50% |
Grid Connection | L + N + PE, 230/240 V |
Protection Rating | IP65 |
Operating Temperature | –40°C to +60°C |
Ideal for Australian single-phase homes seeking a powerful, expandable hybrid solar and battery solution with high battery charging current.
Available now at PowerEase – Official Deye Golden Authorized Distributor for Australia & Oceania. Local stock, fast delivery and expert technical support.
